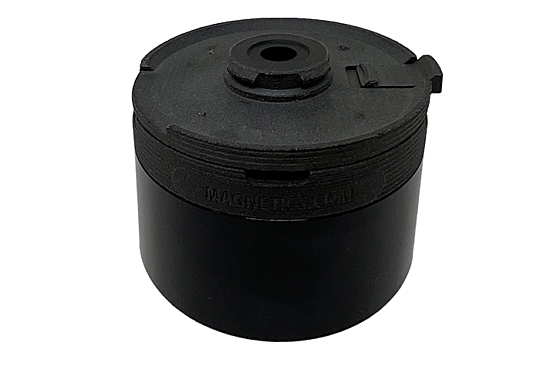

RMQ3TS3DRoboMag™ Quick Changer
Turn your cobot into a magnetic workhorse.
OVERVIEW
The RoboMag™ Quick Changer gives your collaborative robot the power of a permanent magnet. No air or wiring needed for part handling. Just strong and reliable performance with every pick.
Give your cobot the gripping power of a magnet. The RoboMag™ system pairs IMI’s trusted Transporter® Low Profile magnet with a collaborative robot to move parts securely, even in tough environments. Unlike vacuums or grippers, magnets handle a wider range of surfaces with less setup and fewer failures. The RoboMag™ makes it easy to swap between magnetic and other tools in just three seconds, so you can stay flexible without slowing down.
Benefits
- Handles more tasks with one robot. Easily switch between tools for different parts or workflows.
- Faster changeovers. Swap end-of-arm tools in under 3 seconds to keep your line moving.
- Lower cost than traditional systems. Get magnetic gripping without expensive vacuum or gripper setups.
- Built-in safety. Patented locking mechanism prevents accidental drops or tool release.
- Simple integration. Works with most major collaborative robot brands.
- Reliable performance. Magnet holds firm even on oily or uneven surfaces.
- Lightweight and compact. 3D printed design is ideal for typical cobot payloads.
- Ready to scale. Customize for unique tools or applications as your needs grow.
Features
Strong Lifting Power
The RoboMag™ Quick Changer boasts a lifting capacity of over 55 lb (25 kg), providing the strength needed for demanding applications and ensuring secure handling of your materials.
Secure Hold with Rare Earth Magnets
Eliminate dropped parts and ensure reliable operation. Utilizing powerful rare earth magnets, the RoboMag™ Quick Changer delivers exceptional holding force for secure and consistent part retention, outperforming traditional vacuum and gripping methods.
Lightweight Efficiency Through 3D Printing
The RoboMag™ Quick Changer utilizes 3D printing technology to create ultra-lightweight components. This innovative approach minimizes the weight added to your cobot arm, allowing for faster movements, reduced energy consumption, and the ability to handle heavier payloads overall.

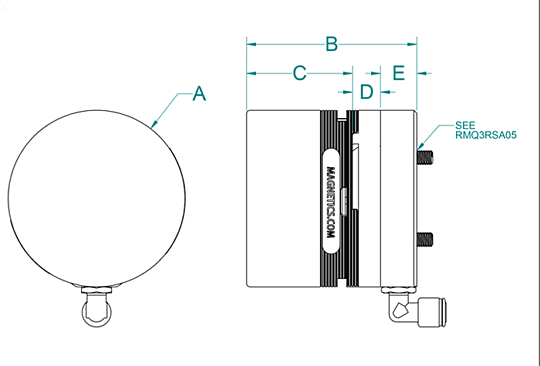

Specifications: RMQ3TS3D
Measurements in inches and lbs
Diameter
3/(76)
Weight
0.43/(0.2)
WLL- Working Load Limit
30/(13.6)
Static Moment Capacity (X & Y) lbf-in/(Nm)
30/(3.4)
Static Moment Capacity (Z) lbf-in/(Nm)
255/(29)
Tool/Adaptor Height
1.80/(46)
Minimum Airflow (SCFM)
2.60-4.25
Minimum Airflow (PSI)
30-60
