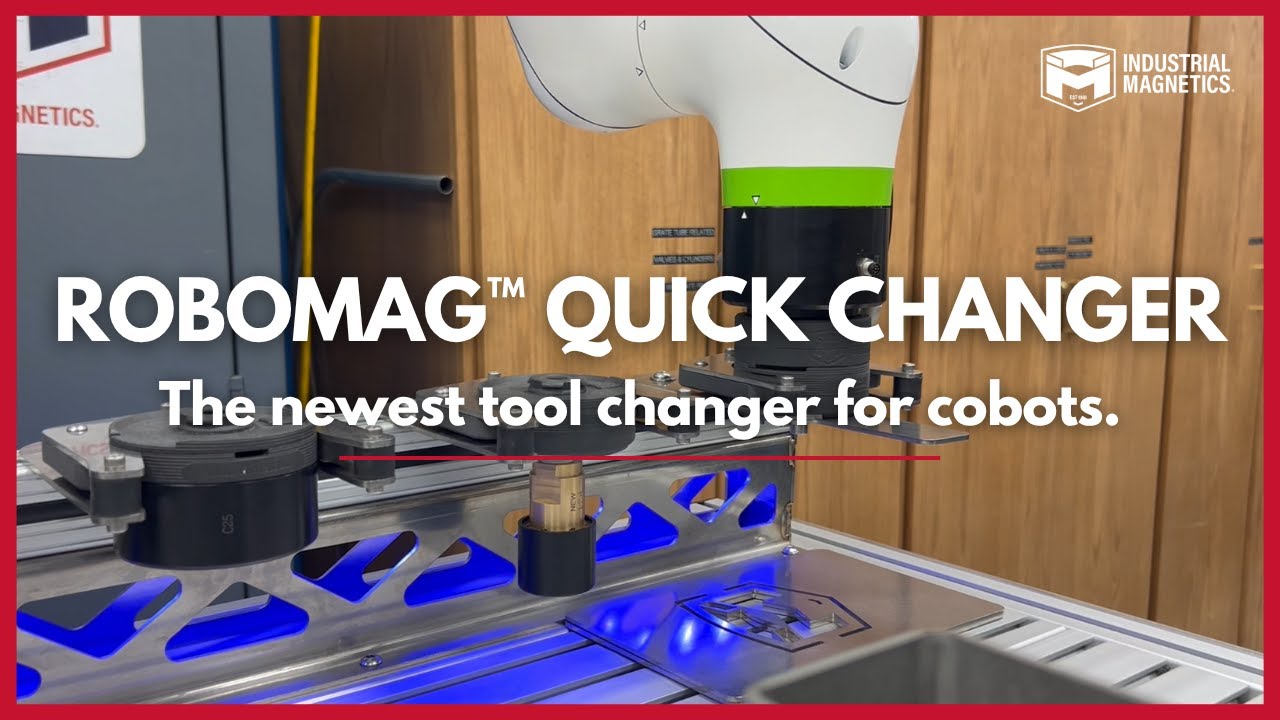

RoboMag™ Quick Changer
Under 3-Second Changes. Any Tool. Unbeatable Price.
OVERVIEW
Maximize your production time with rapid, 3-second magnetic/vacuum tool changes at an unbeatable price, minimizing cycle times and boosting efficiency. IMI’s new RoboMag™ Quick Changer includes the famous Transporter® Low Profile, which helps it to outperform vacuum cup style and grip style end effectors as it integrates seamlessly with major collaborative robot manufacturers’ units.
RoboMag™ Quick Changer Options
Whether you're looking for a complete kit to get started, individual components to fine-tune your setup, or the flexibility to expand later, IMI provides a comprehensive selection to meet your exact requirements. Explore detailed specifications, compatibility information, and application details.
Benefits
- Integrates with collaborative robots
- Automated tool changes in under 3 seconds
- Low-cost option
- Positively secures different end of arm tools for different applications
- Fail-safe patented locking mechanism
- Operates on 25 to 60 psi shop air
- Increases productivity and efficiency by eliminating manual tool changes
- Custom designs for unique tools and applications
- 3D Printed: perfect for low to moderate pay load capacities that are often suited for cobots
RoboMag™ Quick Changer kits come with a Transporter® LP unit. Refer to the Transporter® LP tech sheet (AG-01C) to see benefits.
Features
Strong Lifting Power
The RoboMag™ Quick Changer boasts a lifting capacity of over 55 lb (25 kg), providing the strength needed for demanding applications and ensuring secure handling of your materials.
Secure Hold with Rare Earth Magnets
Eliminate dropped parts and ensure reliable operation. Utilizing powerful rare earth magnets, the RoboMag™ Quick Changer delivers exceptional holding force for secure and consistent part retention, outperforming traditional vacuum and gripping methods.
Lightweight Efficiency Through 3D Printing
The RoboMag™ Quick Changer utilizes 3D printing technology to create ultra-lightweight components. This innovative approach minimizes the weight added to your cobot arm, allowing for faster movements, reduced energy consumption, and the ability to handle heavier payloads overall.
RoboMag™ Quick Changer Products
| SKU | Diameter | Height | Weight | WLL- Working Load Limit | Static Moment Capacity (X & Y) lbf-in/(Nm) | Static Moment Capacity (Z) lbf-in/(Nm) | ISO Mount | Tool/Adaptor Height | Latch Height | Adaptor Plate Height | Minimum Airflow (SCFM) | Minimum Airflow (PSI) | In Stock |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switch to product variant SKU RMQ3KS3M05 | 3/(76) | 2.89/(73) | 0.98/(0.45) | 30/(13.6) | 30/(3.4) | 255/(29) | 9409-1-50-4-M6 | 1.80/(46) | 0.48/(12) | 0.62/(16) | 2.60-4.25 | 30-60 | |

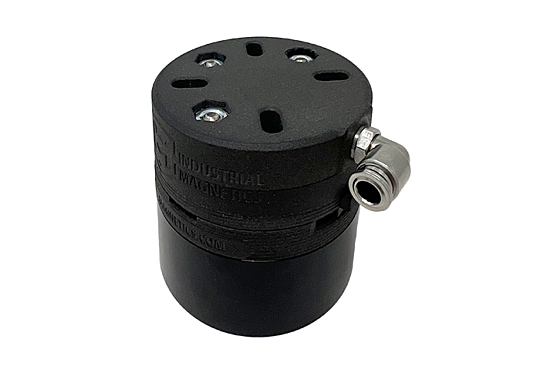

 Switch to product variant SKU RMQ3KS3D05 | 3/(76) | 2.89/(73) | 0.98/(0.45) | 30/(13.6) | 30/(3.4) | 255/(29) | 9409-1-50-4-M6 | 1.80/(46) | 0.48/(12) | 0.62/(16) | 2.60-4.25 | 30-60 | |
 Switch to product variant SKU RMQ3KS38N05 | 3/(76) | 2.13/(54) | 0.76/(0.35) | 50/(22.7) | 30/(3.4) | 255/(29) | 9409-1-50-4-M6 | 1.04/(26) | 0.48/(12) | 0.62/(16) | 2.60-4.25 | 30-60 | |

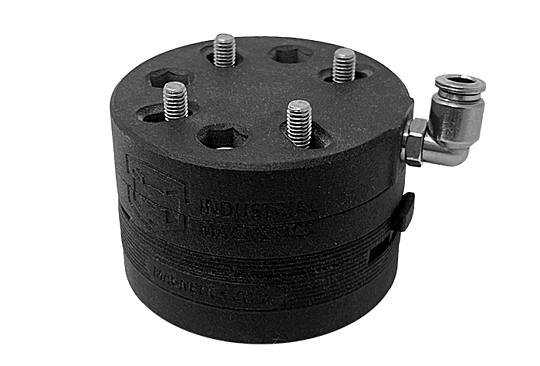

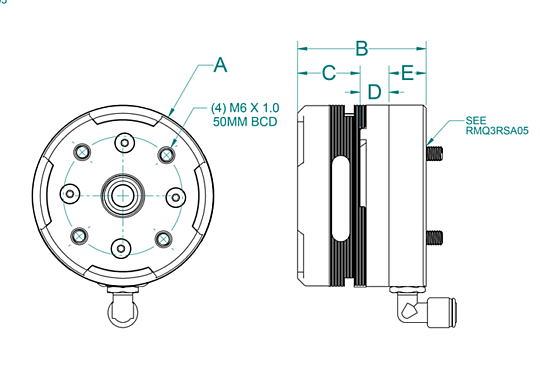

 Switch to product variant SKU RMQ3KS38B05 | 3/(76) | 2.13/(54) | 0.76/(0.35) | 50/(22.7) | 30/(3.4) | 255/(29) | 9409-1-50-4-M6 | 1.04/(26) | 0.48/(12) | 0.62/(16) | 2.60-4.25 | 30-60 | |

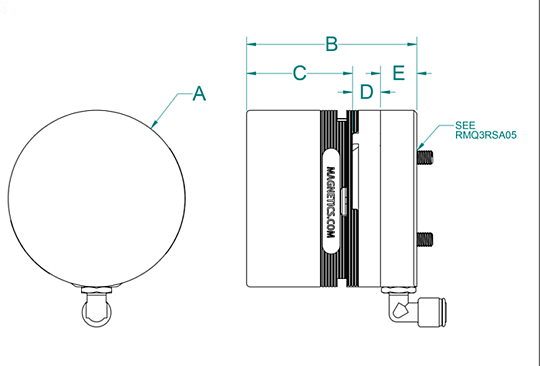

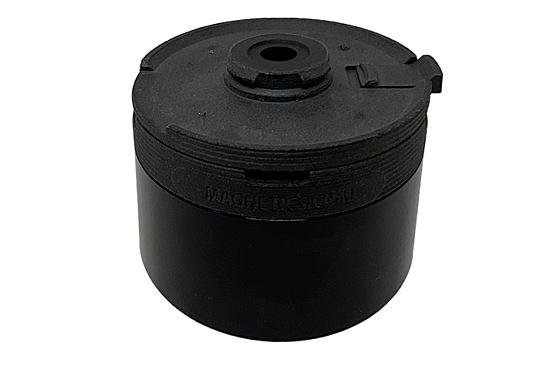

 Switch to product variant SKU RMQ3TS3M | 3/(76) | 0.43/(0.2) | 30/(13.6) | 30/(3.4) | 255/(29) | 1.80/(46) | 2.60-4.25 | 30-60 | |||||
 Switch to product variant SKU RMQ3TS3D | 3/(76) | 0.43/(0.2) | 30/(13.6) | 30/(3.4) | 255/(29) | 1.80/(46) | 2.60-4.25 | 30-60 | |||||

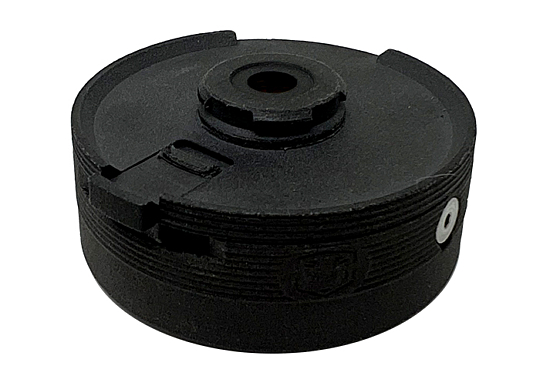

 Switch to product variant SKU RMQ3TS38B | 3/(76) | 0.55/(0.25) | 50/(22.7) | 30/(3.4) | 255/(29) | 1.04/(26) | 2.60-4.25 | 30-60 | |||||

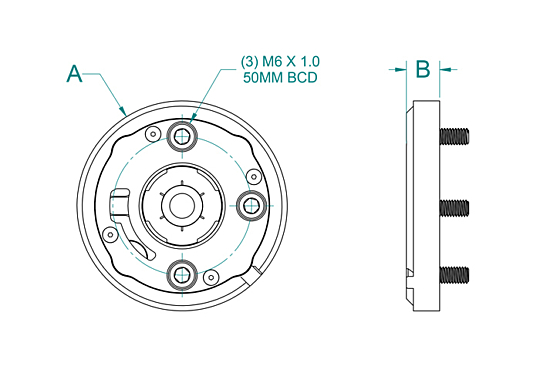

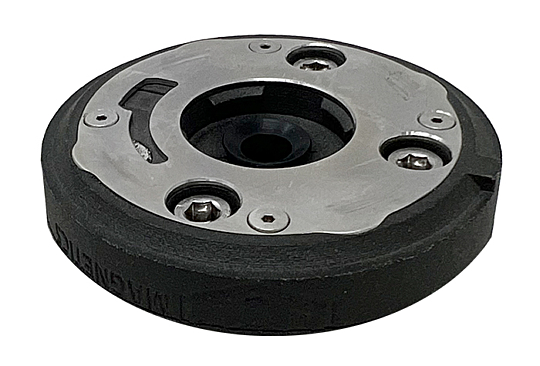

 Switch to product variant SKU RMQ3RSL | 3/(76) | .48/(12) | 0.39/(0.17) | 50/(22.7) | 30/(3.4) | 255/(29) | |||||||
 Switch to product variant SKU RMQ3D |
