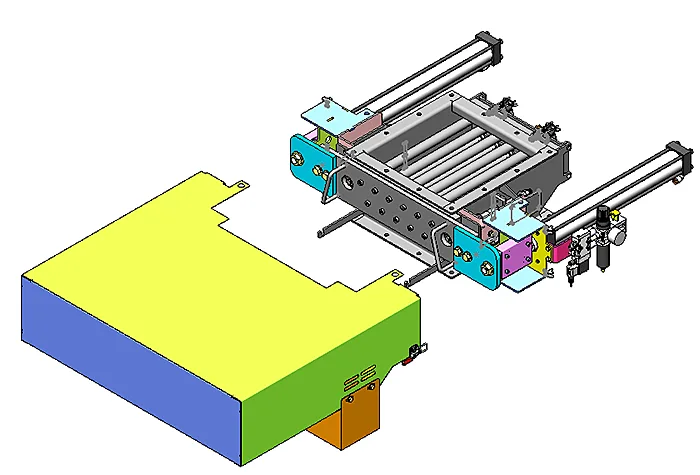

Drawer-In-Housing Retrofit Kit
Upgrade your remote magnet installations with our Drawer-In-Housing Retrofit Kit, designed for applications requiring frequent cleaning and fully automated processing systems. This kit transforms your existing drawer-in-housing units into efficient, self-cleaning magnetic separators, minimizing downtime and enhancing operational efficiency.
What's included in the kit?
Each Retrofit Kit comes complete with all necessary components for installation:
- Air cylinders
- Regulator
- Solenoid valve
- Metal guarding (stainless steel)
- Tool-free removable catch pan
Why choose our Drawer-In-Housing Retrofit Kit?
This kit is the perfect solution for businesses looking to automate tramp metal removal, improve cleaning efficiency, and enhance safety in their magnetic separation systems. By upgrading to a remote-controlled, automated cleaning process, you can reduce labor costs, minimize downtime, and ensure consistent product purity.
How it Works & Key Benefits:
- Automated Cleaning Process: The cleaning process is solenoid-activated (a coil of wire that converts electrical energy into mechanical motion) and can be controlled from a remote location with the flip of a switch. This eliminates the need for manual intervention, making it ideal for hard-to-reach or hazardous locations.
- Rapid Cleaning Cycle: The entire cleaning process is completed in seconds, ensuring minimal disruption to your production.
- Easy Tramp Metal Discharge: An air-actuated stripper seal assembly automatically discharges collected tramp metal into a tool-free, removable catch pan as the drawer opens.
- Enhanced Safety: Includes metal guards with lockouts for operator safety during maintenance.
- Versatile Sizing: Compatible with 1 or 2-row drawer-in-housing units ranging from 6-24 inches in size.
Options:
- Custom sizes and funneled catch pans are available.
- Sealed cleaning zones.
- Finish and welding treatments available for food and sanitary grade applications.
- Other stainless steel grades are available.
- Custom housing designs for magnet in hopper or angled chute installations.
- Individual cleaning drawers (adds to height).
- NEMA 9 solenoids.
