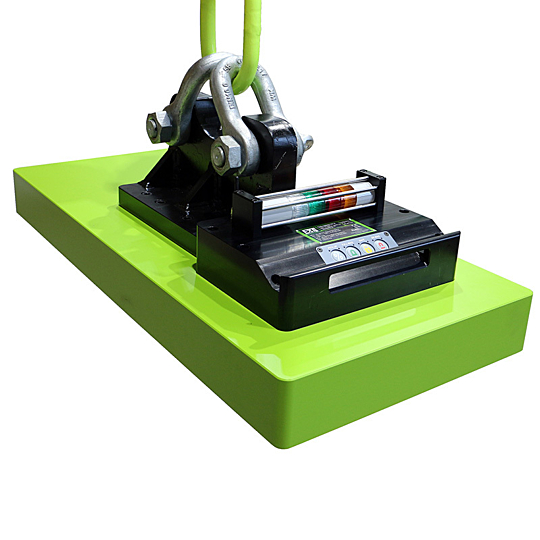

FXE-HD
Electro-permanent lifting magnets in heavy-duty design for lifting thick sheets, slabs, and blanks.
OVERVIEW
For production teams who need to lift large and heavy items with rough or uneven surfaces, Flaig's FXE HD is the new standard in lift magnets. By utilizing bigger, deeper-reaching poles, it delivers a secure and reliable grip, allowing you to easily handle challenging materials such as castings, forgings, weldments, and other fabricated parts.
The Flaig FXE-HD is an electro-permanent magnet module with monobloc, square pole technology. This means that the magnetic core is made from a single, solid block of material, rather than being assembled from multiple pieces. This design eliminates air gaps and weak points, resulting in a more robust, compact, and powerful magnet with a higher magnetic flux density, leading to a more durable and efficient magnet. Square pole technology means that the magnetic poles are square-shaped. This design maximizes the contact area with the workpiece, leading to a more uniform and powerful clamping force.

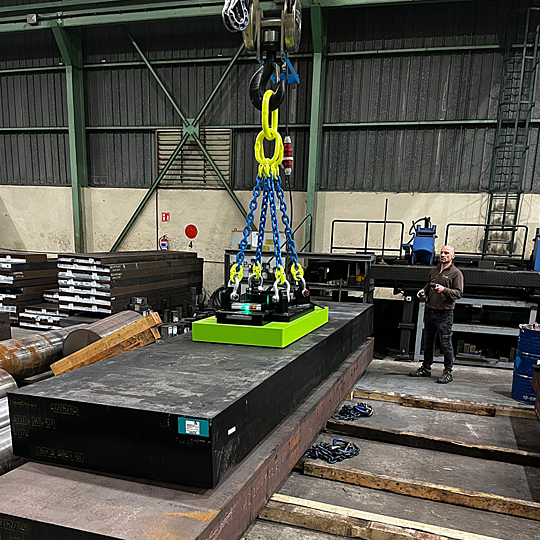

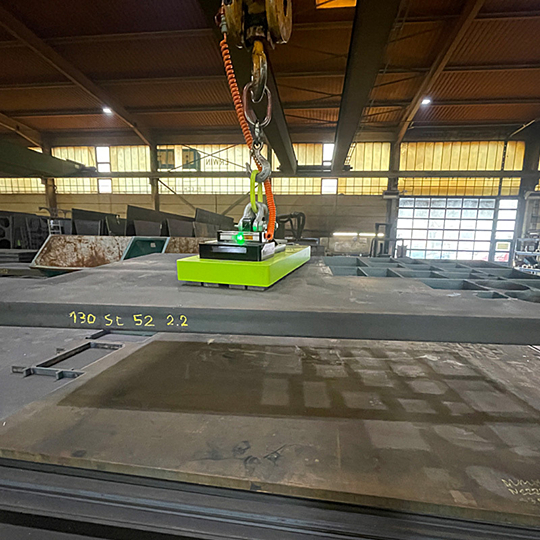

Applications
Features
Onboard controls with highly visible status lights
The onboard controls provide easy, direct operation, eliminating the need for a separate control panel. Status lights offer instant confirmation of the tool's operating status and alert operators to potential issues, ensuring quick troubleshooting and enhanced safety.
Radio control for remote operation
The radio control for remote operation feature allows the user to operate the tool from a safe distance. This enhances operator safety by keeping them away from the suspended load. It also provides greater flexibility, enabling control of the magnet in hard-to-reach areas or when the operator needs to be in a different location.
Lifting hook sensor to lock out "off" function while load is suspended
A lifting hook sensor is a safety feature that prevents the tool from being turned off while it's holding a load. By detecting the presence of a load on the lifting hook, the sensor automatically disables the "off" function. This prevents accidental dropping of a suspended load, protecting both personnel and materials.
Suspension point constructed of 2 shackles and a centered suspension link
The suspension point is built with two shackles and a centered suspension link, ensuring a secure and balanced lift. This robust design prevents twisting and increases the overall stability and safety of the lifting mechanism.
Curly cord power cable
The curly cord power cable provides a durable and flexible electrical connection. Its coiled design prevents tangling and reduces the risk of damage from dragging or kinking. This ensures a reliable power supply while allowing for a wide range of movement.
FXE-HD Products
| SKU | Height | Length | Width | Weight | Bail Height | Bail Width | WLL- Working Load Limit | Magnet Height | Magnet Length | Magnet Width | In Stock |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Switch to product variant SKU FXEHD15800 | 21 | 31.89 | 17.72 | 881.85 | 7.09 | 3.94 | 15800 | 5.31 | 27.68 | 13.48 | |
| Switch to product variant SKU FXEHD21000 | 26 | 40.55 | 16.73 | 992.08 | 8.27 | 4.33 | 21000 | 5.31 | 37.14 | 13.48 | |
| Switch to product variant SKU FXEHD28000 | 29 | 40.55 | 23.62 | 1543.24 | 9.45 | 5.51 | 28000 | 5.31 | 37.14 | 20.35 | |
| Switch to product variant SKU FXEHD35000 | 29 | 50 | 23.62 | 1763.7 | 9.45 | 5.51 | 35000 | 5.31 | 46.61 | 20.35 |
